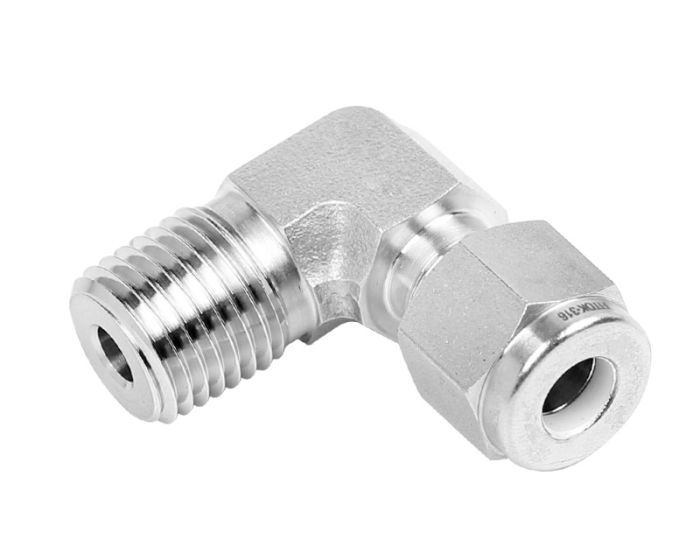

Кутник з зовнішньою різьбою (обтискна муфта під трубку (мм) х зовнішню конічну різьбу ISO (RT))
Артикул:
SS-LM-ML-RT
Залишити відгук
Доступний до замовлення
Способи доставки
- Самовивіз з Нової пошти
- Кур'єр Нової Пошти
- Самовивіз з магазину
- Інші транспортні служби
Способи оплати
- Готівкою при отриманні
- Безготівковий переказ
- Приват 24
| T-Tube O.D. (mm) | P-RT Size | Basic Ordering Number | L mm (in.) | C mm (in.) | G mm (in.) | F mm (in.) | E mm (in.) | B mm (in.) | Lx mm (in.) |
| 3 | 1/8 | SS-LM-ML3-RT2 | 23.6 (0.93) | 12.9 (0.51) | 12.0 (0.47) | 11.1 (0.44) | 2.4 (0.09) | 9.7 (0.38) | 17.8 (0.70) |
| 3 | 1/4 | SS-LM-ML3-RT4 | 24.6 (0.97) | 12.9 (0.51) | 12.0 (0.47) | 12.7 (0.50) | 2.4 (0.09) | 14.2 (0.56) | 23.4 (0.92) |
| 4 | 1/8 | SS-LM-ML4-RT2 | 25.4 (1.00) | 13.7 (0.54) | 12.0 (0.47) | 12.7 (0.50) | 2.4 (0.09) | 9.7 (0.38) | 18.8 (0.74) |
| 4 | 1/4 | SS-LM-ML4-RT4 | 25.4 (1.00) | 13.7 (0.54) | 12.0 (0.47) | 12.7 (0.50) | 2.4 (0.09) | 14.2 (0.56) | 23.4 (0.92) |
| 6 | 1/8 | SS-LM-ML6-RT2 | 27.0 (1.06) | 15.3 (0.60) | 14.0 (0.55) | 12.7 (0.50) | 4.8 (0.19) | 9.7 (0.38) | 18.8 (0.74) |
| 6 | 1/4 | SS-LM-ML6-RT4 | 27.0 (1.06) | 15.3 (0.60) | 14.0 (0.55) | 12.7 (0.50) | 4.8 (0.19) | 14.2 (0.56) | 23.4 (0.92) |
| 6 | 3/8 | SS-LM-ML6-RT6 | 29.8 (1.17) | 15.3 (0.60) | 14.0 (0.55) | 17.5 (0.69) | 4.8 (0.19) | 14.2 (0.56) | 26.2 (1.03) |
| 6 | 1/2 | SS-LM-ML6-RT8 | 31.8 (1.25) | 15.3 (0.60) | 14.0 (0.55) | 20.6 (0.81) | 4.8 (0.19) | 19.1 (0.75) | 33.0 (1.30) |
| 8 | 1/8 | SS-LM-ML8-RT2 | 28.8 (1.13) | 16.2 (0.64) | 16.0 (0.63) | 14.3 (0.56) | 4.8 (0.19) | 9.7 (0.38) | 19.8 (0.78) |
| 8 | 1/4 | SS-LM-ML8-RT4 | 28.8 (1.13) | 16.2 (0.64) | 16.0 (0.63) | 14.3 (0.56) | 6.4 (0.25) | 14.2 (0.56) | 24.4 (0.96) |
| 8 | 3/8 | SS-LM-ML8-RT6 | 30.6 (1.20) | 16.2 (0.64) | 16.0 (0.63) | 17.5 (0.69) | 6.4 (0.25) | 14.2 (0.56) | 26.2 (1.03) |
| 8 | 1/2 | SS-LM-ML8-RT8 | 32.6 (1.28) | 16.2 (0.64) | 16.0 (0.63) | 20.6 (0.81) | 6.4 (0.25) | 19.1 (0.75) | 33.0 (1.30) |
| 10 | 1/8 | SS-LM-ML10-RT2 | 31.5 (1.24) | 17.2 (0.68) | 19.0 (0.75) | 17.5 (0.69) | 4.8 (0.19) | 9.7 (0.38) | 21.6 (0.85) |
| 10 | 1/4 | SS-LM-ML10-RT4 | 31.5 (1.24) | 17.2 (0.68) | 19.0 (0.75) | 17.5 (0.69) | 7.1 (0.28) | 14.2 (0.56) | 26.2 (1.03) |
| 10 | 3/8 | SS-LM-ML10-RT6 | 31.5 (1.24) | 17.2 (0.68) | 19.0 (0.75) | 17.5 (0.69) | 7.9 (0.31) | 14.2 (0.56) | 26.2 (1.03) |
| 10 | 1/2 | SS-LM-ML10-RT8 | 33.5 (1.32) | 17.2 (0.68) | 19.0 (0.75) | 20.6 (0.81) | 7.9 (0.31) | 19.1 (0.75) | 33.0 (1.30) |
| 12 | 1/8 | SS-LM-ML12-RT2 | 36.0 (1.42) | 22.8 (0.90) | 22.0 (0.87) | 20.6 (0.81) | 4.8 (0.19) | 9.7 (0.38) | 23.6 (0.93) |
| 12 | 1/4 | SS-LM-ML12-RT4 | 36.0 (1.42) | 22.8 (0.90) | 22.0 (0.87) | 20.6 (0.81) | 7.1 (0.28) | 14.2 (0.56) | 28.2 (1.11) |
| 12 | 3/8 | SS-LM-ML12-RT6 | 36.0 (1.42) | 22.8 (0.90) | 22.0 (0.87) | 20.6 (0.81) | 9.5 (0.37) | 14.2 (0.56) | 28.2 (1.11) |
| 12 | 1/2 | SS-LM-ML12-RT8 | 36.0 (1.42) | 22.8 (0.90) | 22.0 (0.87) | 20.6 (0.81) | 9.5 (0.37) | 19.1 (0.75) | 33.0 (1.30) |
| 12 | 3/4 | SS-LM-ML12-RT12 | 39.8 (1.57) | 22.8 (0.90) | 22.0 (0.87) | 27.0 (1.06) | 9.5 (0.37) | 19.1 (0.75) | 36.8 (1.45) |
| 14 | 1/2 | SS-LM-ML14-RT8 | 38.1 (1.50) | 24.4 (0.96) | 25.0 (0.98) | 23.8 (0.94) | 11.1 (0.44) | 19.1 (0.75) | 35.1 (1.38) |
| 15 | 1/2 | SS-LM-ML15-RT8 | 38.1 (1.50) | 24.4 (0.96) | 25.0 (0.98) | 23.8 (0.94) | 11.9 (0.47) | 19.1 (0.75) | 35.1 (1.38) |
| 16 | 1/4 | SS-LM-ML16-RT4 | 38.0 (1.50) | 24.4 (0.96) | 25.0 (0.98) | 23.8 (0.94) | 7.1 (0.28) | 14.2 (0.56) | 30.2 (1.19) |
| 16 | 3/8 | SS-LM-ML16-RT6 | 38.0 (1.50) | 24.4 (0.96) | 25.0 (0.98) | 23.8 (0.94) | 9.5 (0.37) | 14.2 (0.56) | 30.2 (1.19) |
| 16 | 1/2 | SS-LM-ML16-RT8 | 38.0 (1.50) | 24.4 (0.96) | 25.0 (0.98) | 23.8 (0.94) | 11.9 (0.47) | 19.1 (0.75) | 35.1 (1.38) |
| 16 | 3/4 | SS-LM-ML16-RT12 | 39.8 (1.57) | 24.4 (0.96) | 25.0 (0.98) | 27.0 (1.06) | 12.7 (0.50) | 19.1 (0.75) | 36.8 (1.45) |
| 18 | 1/2 | SS-LM-ML18-RT8 | 39.8 (1.57) | 24.4 (0.96) | 30.0 (1.18) | 27.0 (1.06) | 11.9 (0.47) | 19.1 (0.75) | 36.8 (1.45) |
| 18 | 3/4 | SS-LM-ML18-RT12 | 39.8 (1.57) | 24.4 (0.96) | 30.0 (1.18) | 27.0 (1.06) | 15.1 (0.59) | 19.1 (0.75) | 36.8 (1.45) |
| 20 | 1/2 | SS-LM-ML20-RT8 | 44.6 (1.76) | 26.0 (1.02) | 32.0 (1.26) | 34.9 (1.37) | 11.9 (0.47) | 19.1 (0.75) | 41.7 (1.64) |
| 20 | 3/4 | SS-LM-ML20-RT12 | 44.6 (1.76) | 26.0 (1.02) | 32.0 (1.26) | 34.9 (1.37) | 15.9 (0.63) | 19.1 (0.75) | 41.7 (1.64) |
| 22 | 3/4 | SS-LM-ML22-RT12 | 44.6 (1.76) | 26.0 (1.02) | 32.0 (1.26) | 34.9 (1.37) | 15.9 (0.63) | 19.1 (0.75) | 41.7 (1.64) |
| 22 | 1 | SS-LM-ML22-RT16 | 44.6 (1.76) | 26.0 (1.02) | 32.0 (1.26) | 34.9 (1.37) | 18.3 (0.72) | 23.9 (0.94) | 46.5 (1.83) |
| 25 | 3/4 | SS-LM-ML25-RT12 | 49.1 (1.93) | 31.3 (1.23) | 38.0 (1.50) | 34.9 (1.37) | 15.9 (0.63) | 19.1 (0.75) | 41.7 (1.64) |
| 25 | 1 | SS-LM-ML25-RT16 | 49.1 (1.93) | 31.3 (1.23) | 38.0 (1.50) | 34.9 (1.37) | 21.8 (0.86) | 23.9 (0.94) | 46.5 (1.83) |
| 28 | 1 | SS-LM-ML28-RT16 | 64.0 (2.52) | 36.6 (0.90) | 46.0 (1.81) | 42.9 (1.69) | 21.8 (0.86) | 23.9 (0.94) | 53.1 (2.09) |
-
Приєднання 1:Обтискна муфта (мм)
-
Приєднання 2:Зовнішня конічна різьба
-
Обтискна муфта (мм):3 мм, 4 мм, 6 мм, 8 мм, 10 мм, 12 мм, 14 мм, 15 мм, 16 мм, 18 мм, 20 мм, 22 мм, 25 мм, 28 мм
-
Зовнішня конічна різьба:3/4", 1/2", 1/4", 1/8", 3/8", 1"
-
Виробник:FITOK
